Mounting - Power Train - LH

FRT No: 40011102

    Remove


  1. Remove power train assembly (refer to procedure).

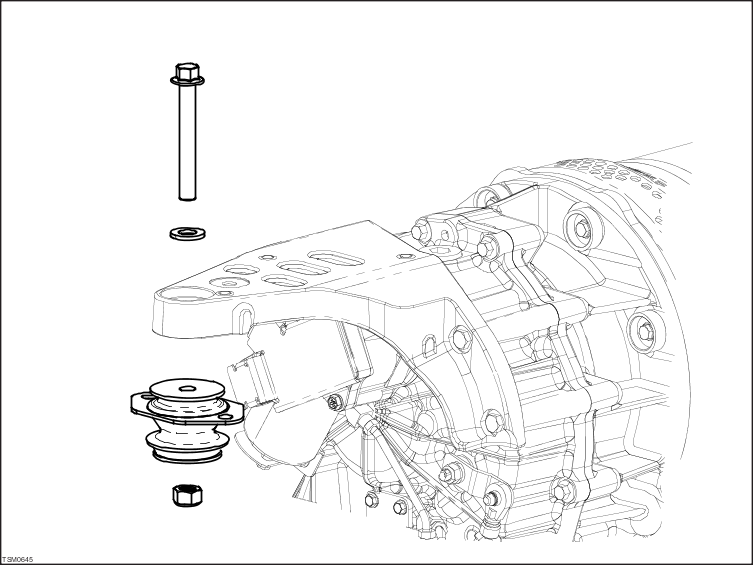

  2. Remove nut and bolt securing mounting to transmission (torque - 70 Nm).


  3. Remove mounting.

    Installation


  1. Installation procedure is reverse of removal except for the following.

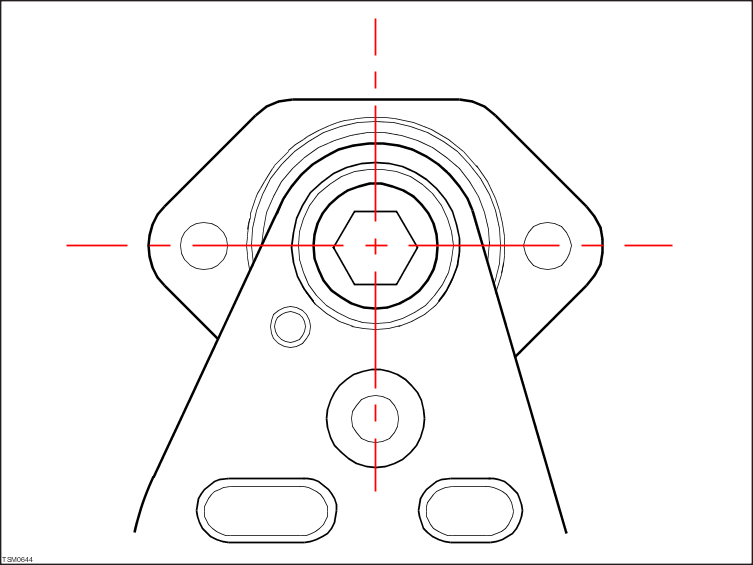

  2. The power train mounting bush should be installed so that the subframe mounting holes are located perpendicular to the transmission casting.
