Fan Assembly - Motor

FRT No: 40011002

    Remove


  1. Raise and support vehicle.
    2. WARNING: Do not work on an incorrectly supported vehicle.



  2. Remove rear diffuser tray panel (refer to procedure).

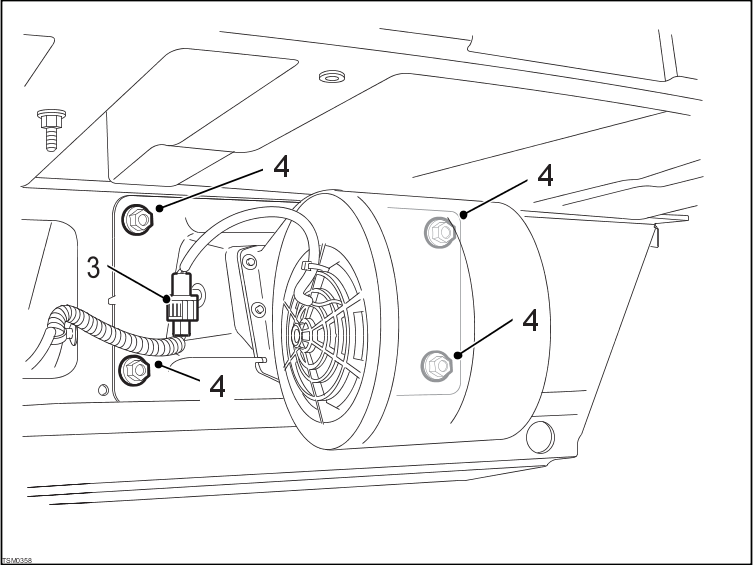

  3. Disconnect harness connector from fan assembly.


  4. Remove nuts (x4) securing fan assembly to rear subframe (torque - 18 Nm).

  5. Remove fan assembly

    Installation


  1. Installation procedure is reverse of removal.
