Diffuser Trim - Rear

FRT No: 10012902

    Remove


  1. Remove rear diffuser tray panel (refer to procedure).

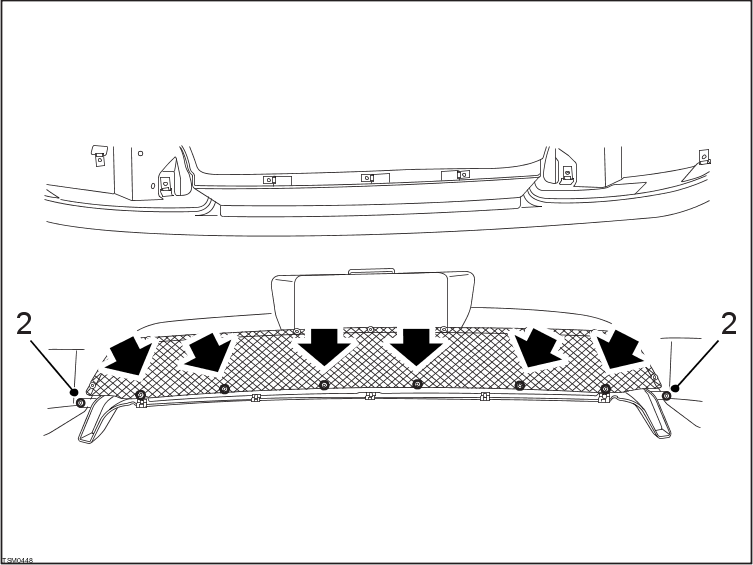

  2. Remove screws and washers (x2) securing diffuser trim to bumper.


  3. Remove bolts and washers (x6) securing diffuser to bumper grille.

  4. Remove rear diffuser trim.

  5. Remove captive nuts (x11) from diffuser.

    Installation


  1. Installation procedure is reverse of removal.
