Wheel Arch Liner - Forward - Rear - LH

FRT No: 12011502

    Remove


  1. Raise and support vehicle.
    2. WARNING: Do not work on an incorrectly supported vehicle.



  2. Remove road wheel(s) (torque - 105 Nm).

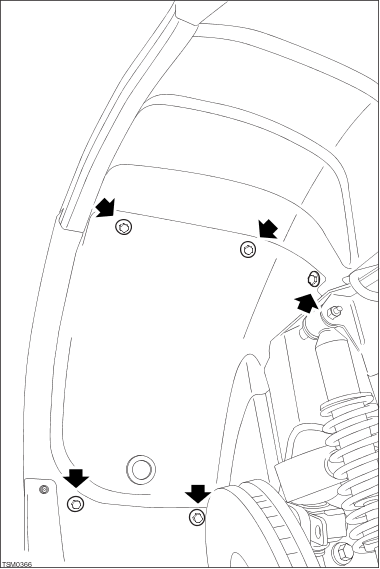

  3. Remove bolts and washers (x5) securing wheel arch liner to body.


  4. Remove wheel arch liner.

    Installation


  1. Installation procedure is reverse of removal.
