Blower Motor - HVAC

FRT No: 18070802

    Remove


  1. Remove HVAC assembly (refer to procedure).

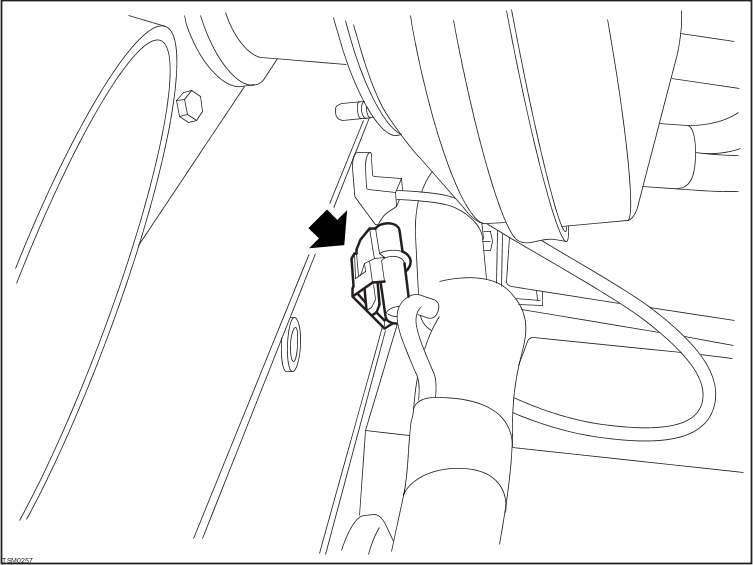

  2. Remove cable tie securing harness to bracket. Disconnect blower connector.

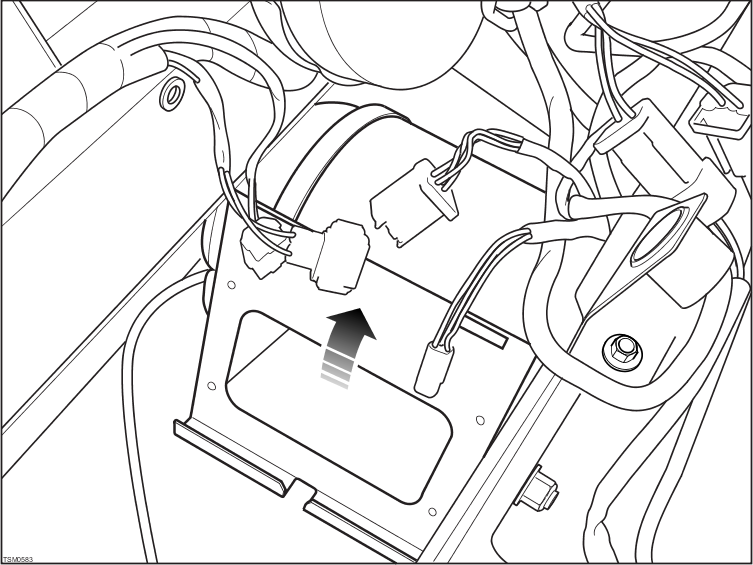

  3. Maneuver blower motor up and to the right to remove from body.

    Installation


  1. Installation procedure is reverse of removal.
