Panel - Undershield - Front

FRT No: 10250602

    Remove


  1. Remove chin spoiler (refer to procedure).

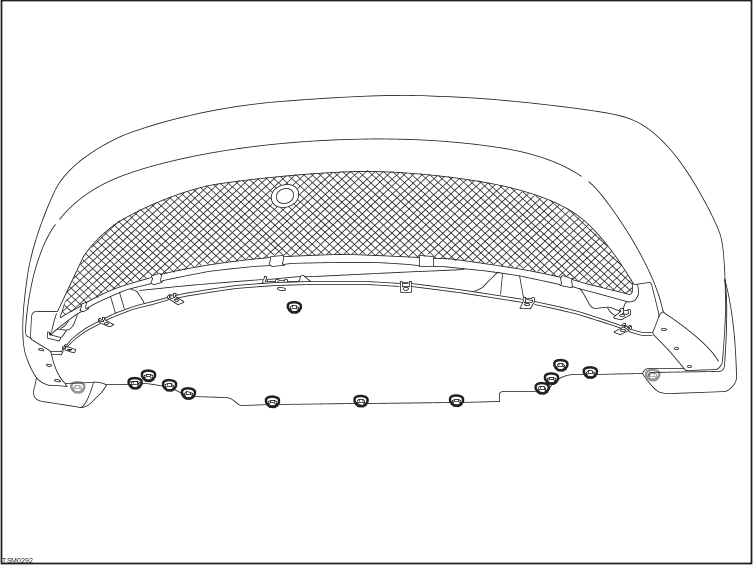

  2. Remove bolts (x14) securing front undershield to chassis (torque - 8 Nm).
    3. CAUTION: Replace all Patchbolt(s).



  3. Release undershield from lip and remove undershield.

    Installation


  1. Installation procedure is reverse of removal.
