Lock Barrel - Emergency Release - LH

FRT No: 10171302

    Remove


  1. Raise door glass.

  2. Remove door trim panel (refer to procedure).

  3. Remove and discard door curtain.

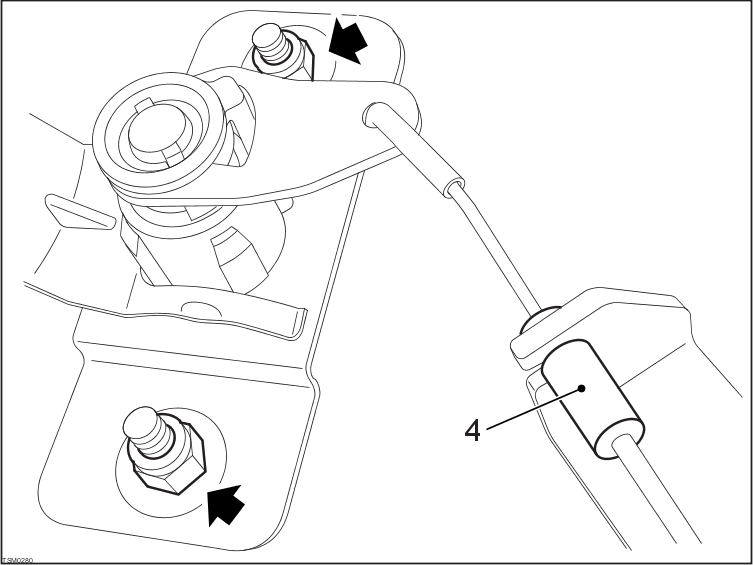

  4. Release emergency release lock cable from bracket.


  5. Remove nuts (x2) securing emergency release lock barrel to door assembly.

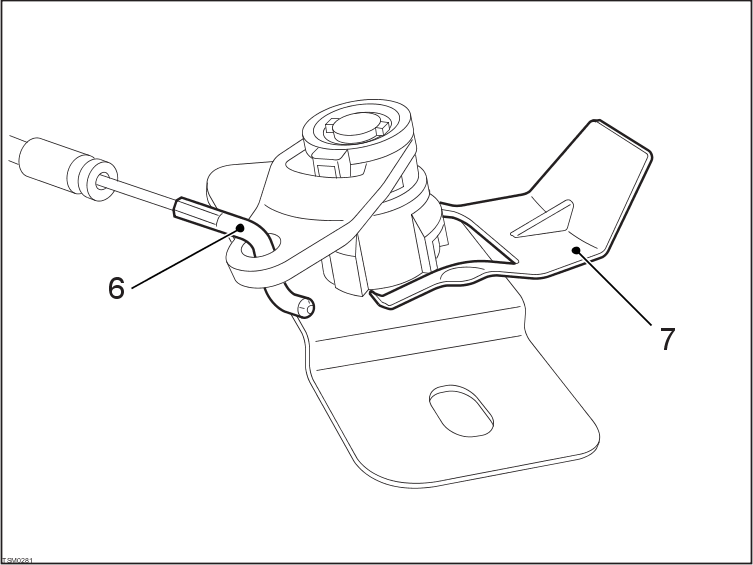

  6. Disconnect emergency release cable from lock barrel.


  7. Remove clip securing lock barrel to fixing plate and release lock barrel.

    Installation


  1. Installation procedure is reverse of removal except for the following.

  2. Install and secure new door curtain to door with double sided tape.
