Panel - Door Trim - Driver - For Access

FRT No: 15130201

    Remove


  1. Remove door pull handle (refer to procedure).

  2. Carefully pull back corners of door panel insert for access and remove screws (x2) securing trim panel to door.


  3. Release clips (x8) securing trim panel to door.

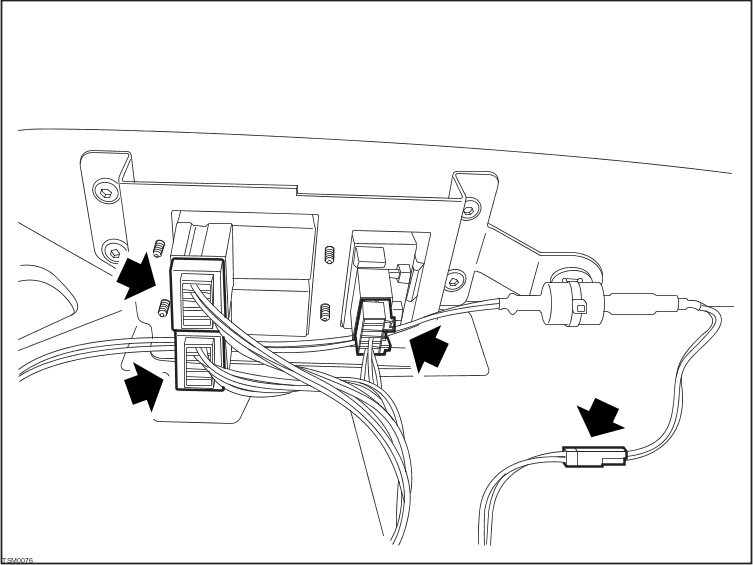

  4. Disconnect door switch pack connectors (x3).

    5. NOTE: Identify the LH and RH window switch connectors prior to disconnection


  5. Disconnect door speaker harness connector.

  6. Remove door trim panel.

    Installation


  1. Installation procedure is reverse of removal.
