Panel - Door Trim - Driver

FRT No: 15130202

    Remove


  1. Remove door trim panel (refer to procedure).

  2. Carefully release clips (x7) securing insert panel to door trim panel.


  3. Remove door insert panel.

  4. If fitted, remove screw securing speaker bracket to door panel.


  5. Release speaker from door.

  6. Remove tape patches securing harness to trim panel.

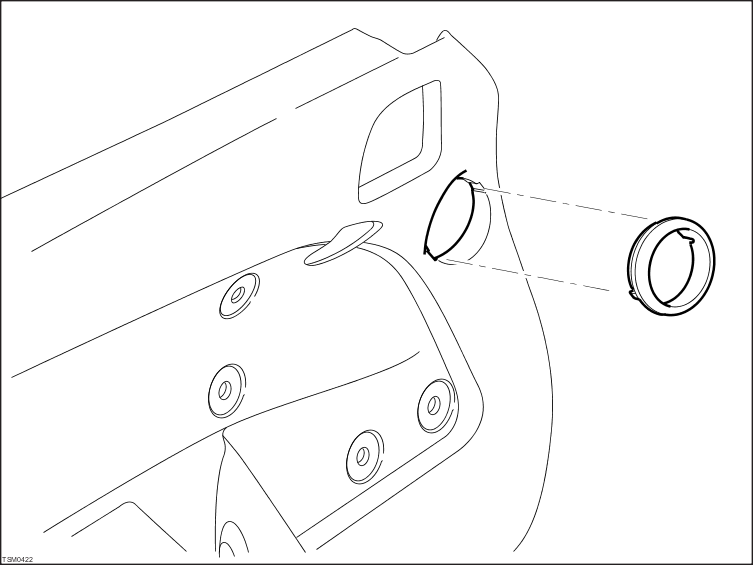

  7. Remove speaker retaining ring from door panel.

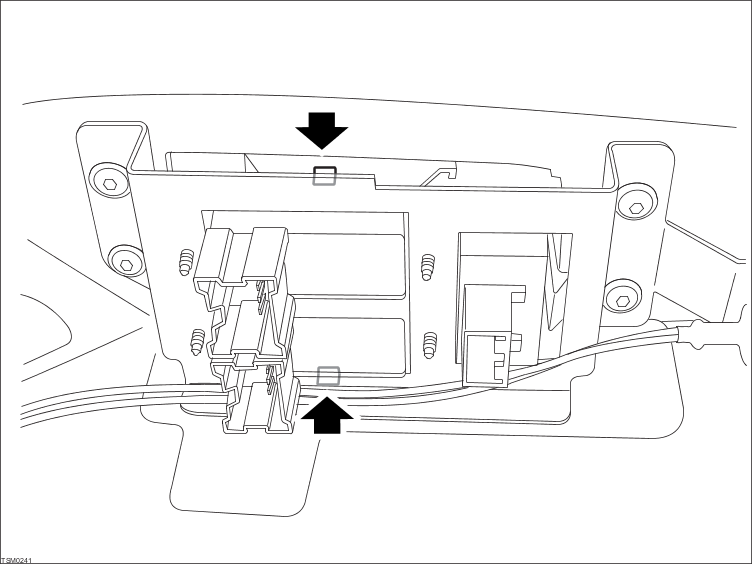

  8. Release clips (x2) securing door switch pack trim panel to door and remove switch pack trim panel.

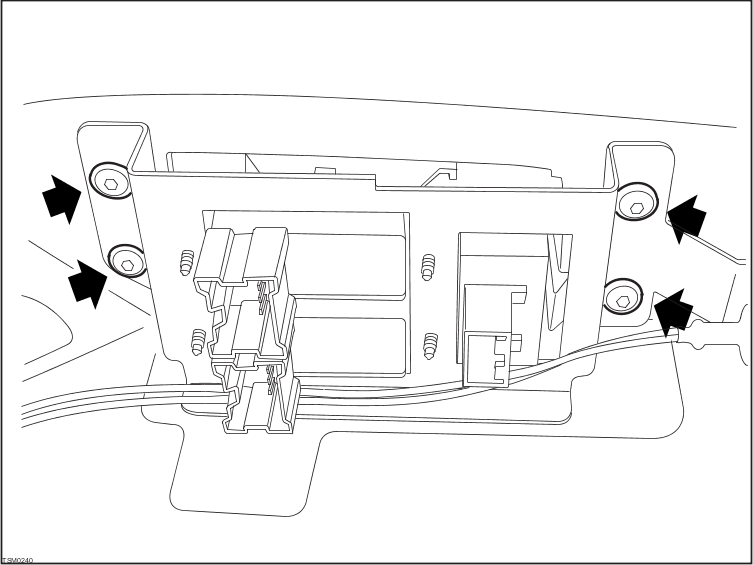

  9. Remove screws (x4) securing switch pack retaining plate to door trim panel.


  10. Remove switch pack retaining plate and switches.

    Installation


  1. Installation procedure is reverse of removal.
