Hinge - Trunk Lid - LH

FRT No: 10113002

    Remove


  1. Remove trunk lid (refer to procedure).

  2. Remove panel decking (refer to procedure).

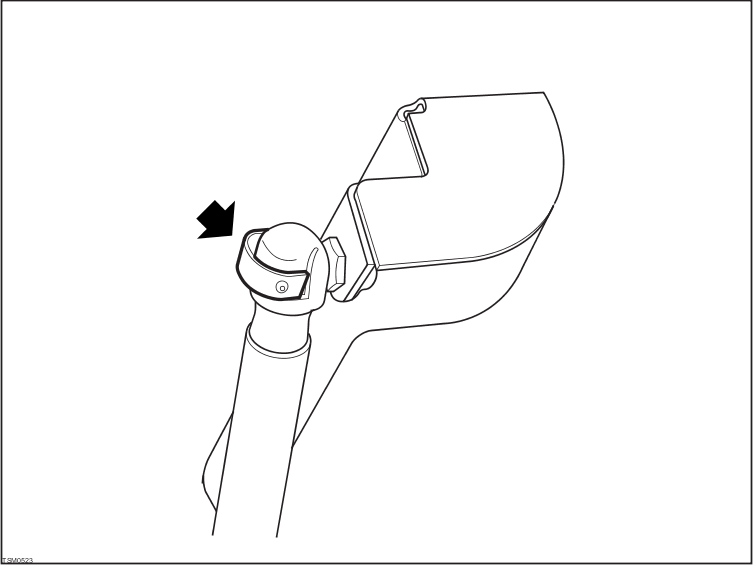

  3. Release clip securing strut to hinge and disconnect strut from hinge.

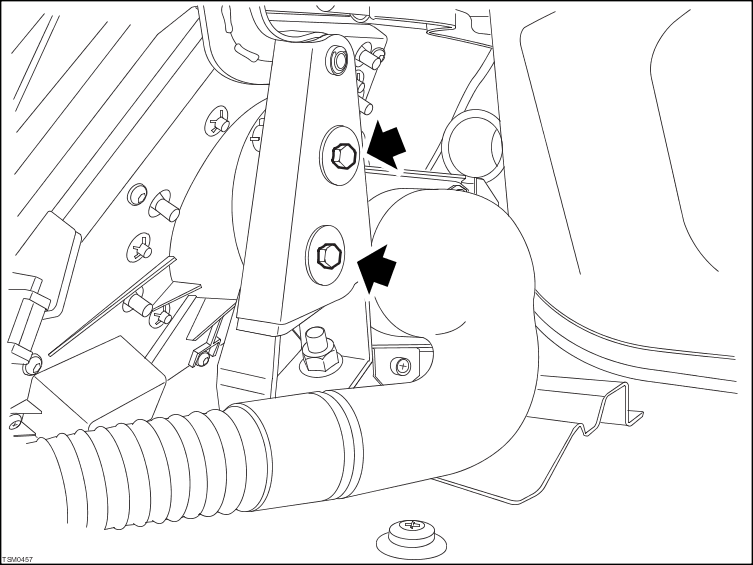

  4. Remove bolts (x2) securing hinge to seat belt anchorage frame stay (torque 25 Nm).


  5. Remove trunk lid hinge.

    Installation


  1. Installation procedure is reverse of removal.
