Speaker - Door - LH/RH

FRT No: 17270902

    Remove


  1. Remove door trim panel (refer to procedure).

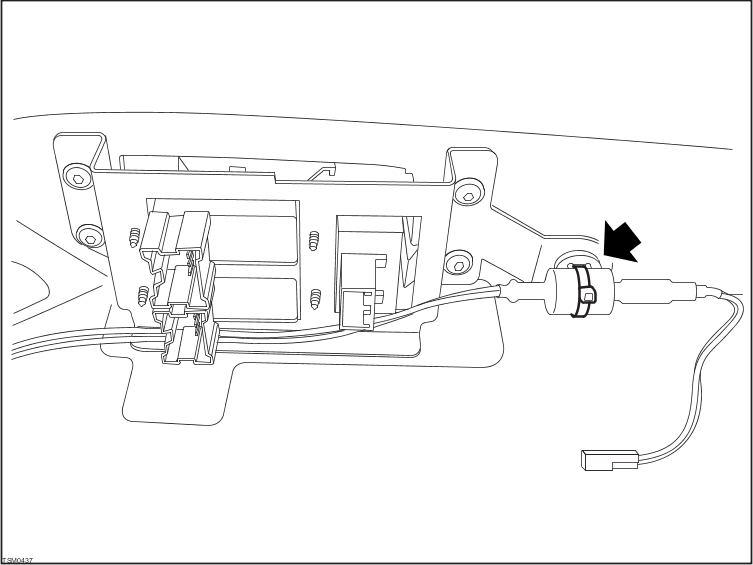

  2. Release cable tie securing speaker harness to switch pack retaining plate.

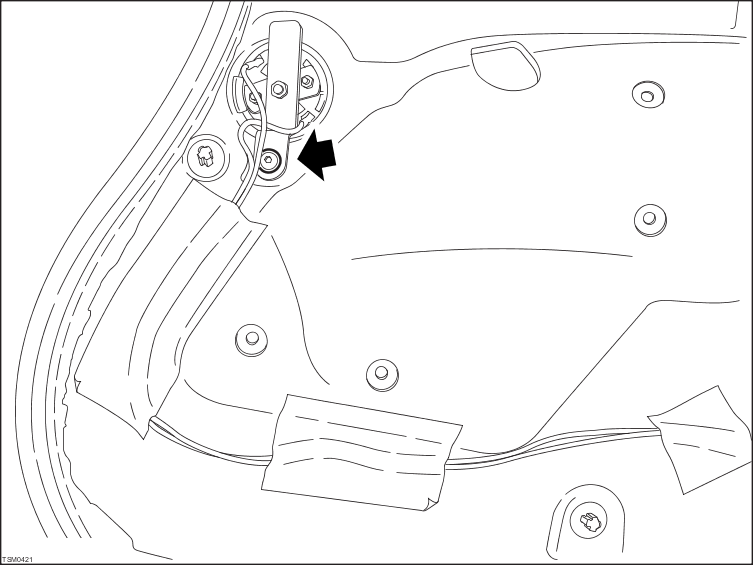

  3. Remove screw securing speaker bracket to door panel.


  4. Remove tape patches securing speaker harness to door trim panel.

  5. Release speaker from door and remove.

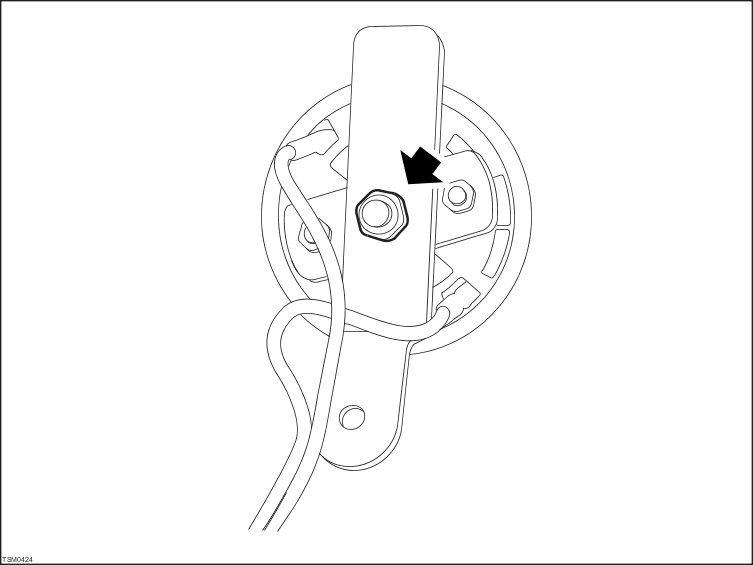

  6. Remove nut securing mounting bracket to speaker and remove bracket.

    Installation


  1. Installation procedure is reverse of removal.
