Hub - Front - LH

FRT No: 31010602

    Remove


  1. Raise and support vehicle.
    2. WARNING: Do not work on an incorrectly supported vehicle.



  2. Remove road wheel (torque - 105 Nm).

  3. Remove front brake disc (refer to procedure).

    4. NOTE: When installing, apply Loctite® 242® thread locking compound to bolt/screw threads.

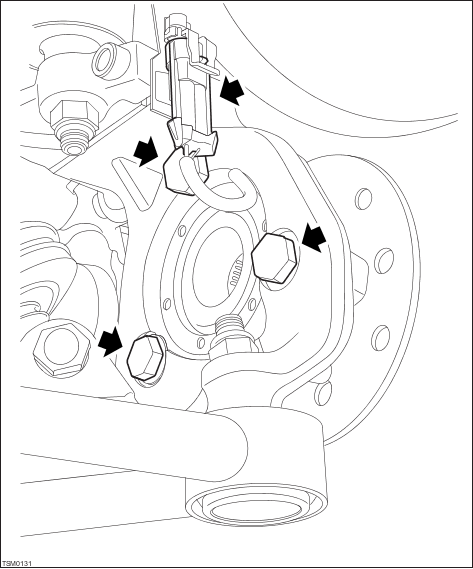

  4. Remove bolts (x3) securing hub to upright (torque - 90 Nm).
    5. CAUTION: Tighten bolts evenly using a diagonal sequence.


    NOTE: When installing, apply Loctite® 242® thread locking compound to bolt/screw threads.


  5. Remove front hub.

    Installation


  1. Installation procedure is reverse of removal.
