Brake Disc - Front - LH

FRT No: 33010102

    Remove


  1. Raise and support vehicle.
    2. WARNING: Do not work on an incorrectly supported vehicle.



  2. Remove road wheel (torque - 105 Nm)

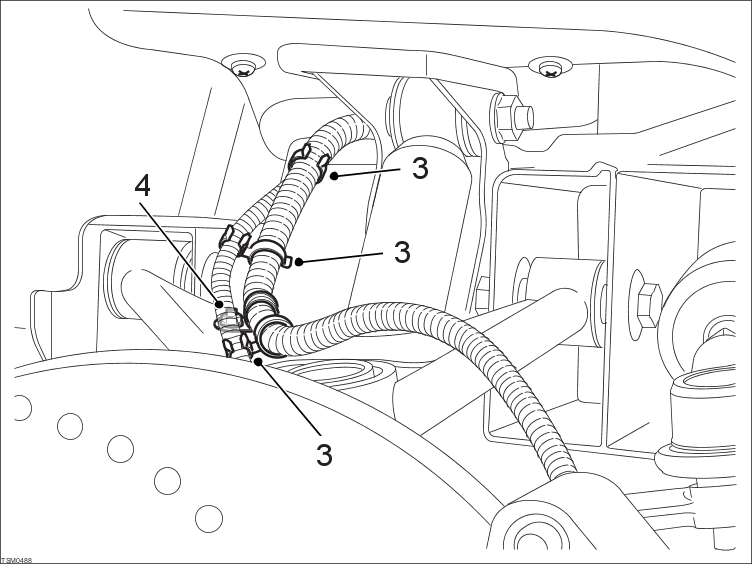

  3. Release clips (x3) securing wheel speed sensor harness to brake hose.


  4. Remove nut securing brake hose to upper wishbone.

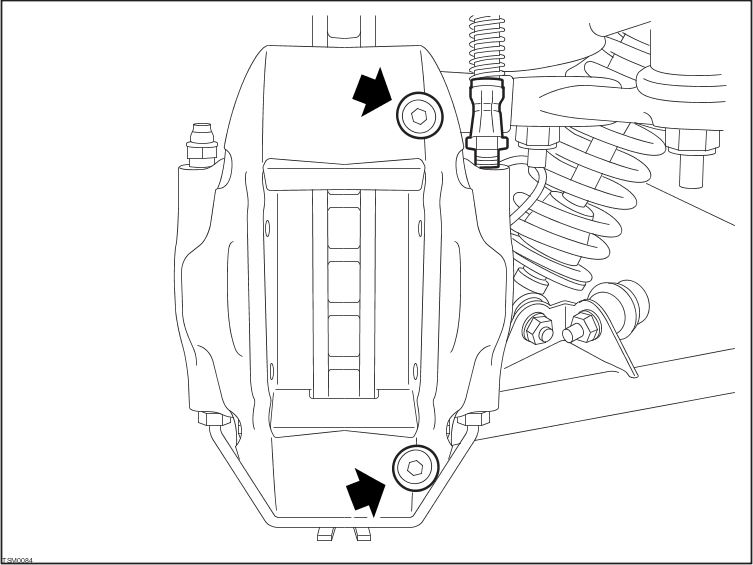

  5. Remove (bolts x2) securing caliper to upright, release caliper (torque - 45 Nm). Use the Service S-hook tool to hang the caliper.

    6. NOTE: When installing, apply Loctite® 242® thread locking compound to bolt/screw threads.

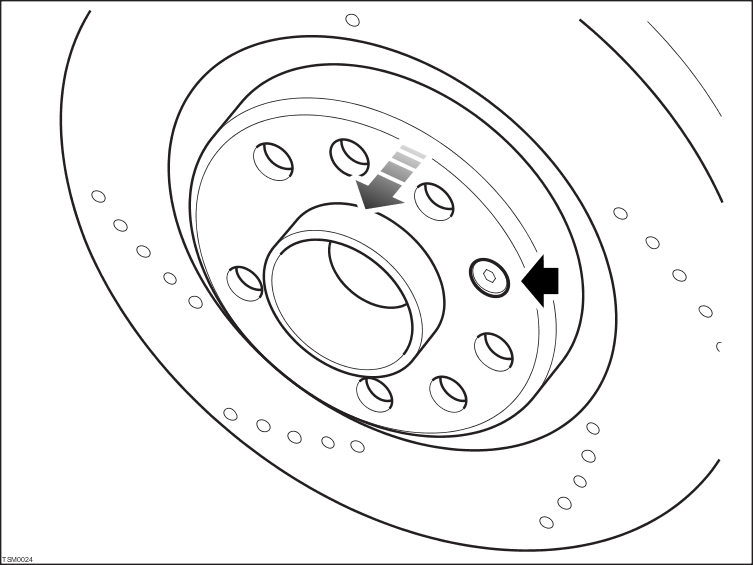

  6. Remove screw securing disc to hub and remove disc (torque - 20 Nm).

    Installation


  1. Installation procedure is reverse of removal except for the following.

  2. Clean mating face of hub and disc.

  3. Pump brake pedal at least 5 times to seat pads against brake disc.
    4. WARNING: Always check that brake pads are seated correctly before driving the vehicle.
