Light Ring Assembly - Charge Port

FRT No: 44012502

    Remove


  1. Remove LH trunk lid hinge (refer to procedure).

  2. Open charge port door.

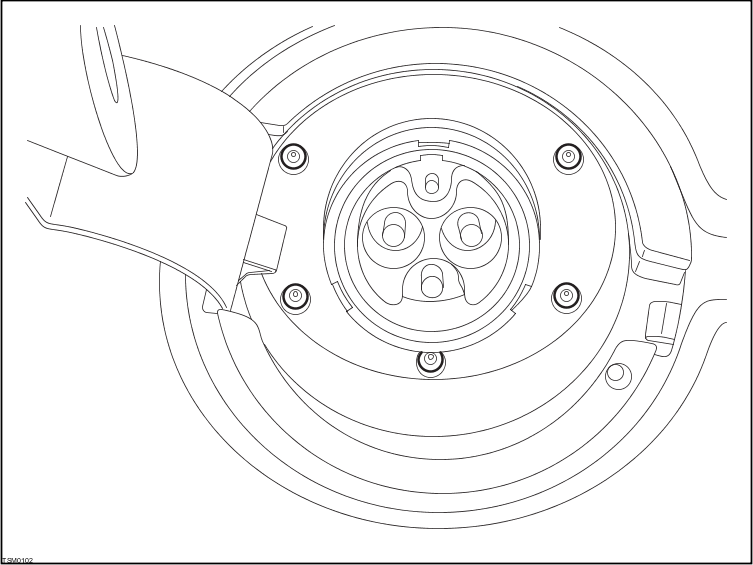

  3. Remove screws (x5) securing cable to light ring assembly.


  4. Move cable aside to access hinge bracket.

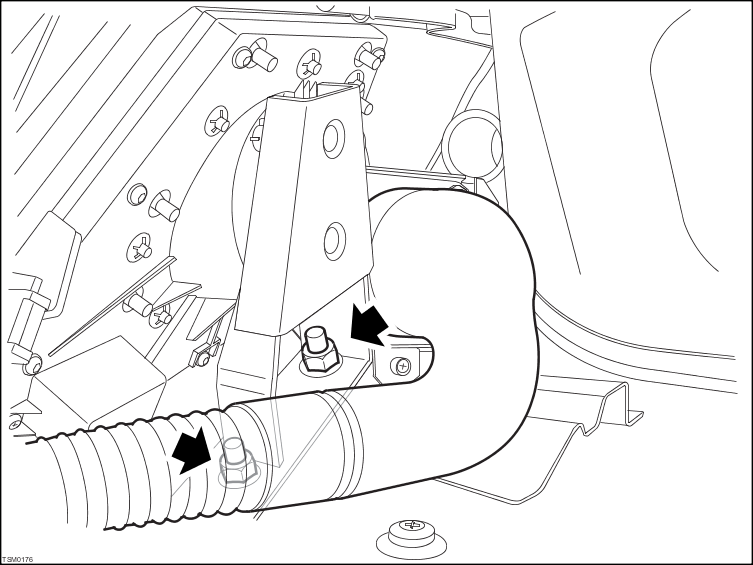

  5. Remove nuts (x2) securing hinge bracket to stay and remove bracket (torque - 20 Nm).

  6. Disconnect connector from light ring assembly.

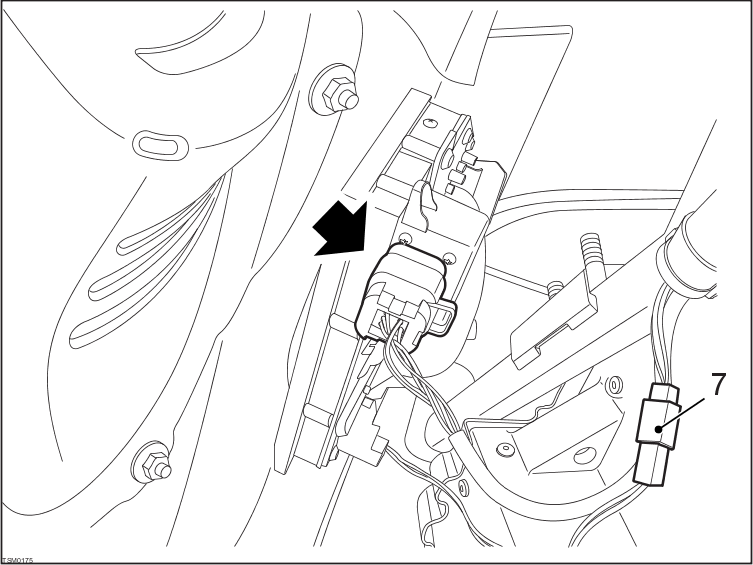

  7. Disconnect harness connector from charge port door switch.

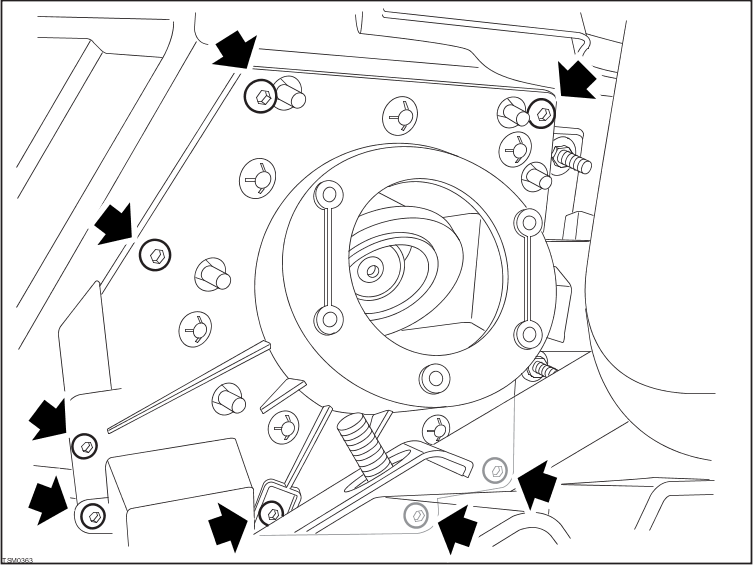

  8. Remove screws (x8) securing light ring assembly to body and remove light ring.

    Installation


  1. Installation procedure is reverse of removal.
