Trim - Center Console - Lower

FRT No: 15190802

    Remove


  1. Remove power socket trim (refer to procedure).

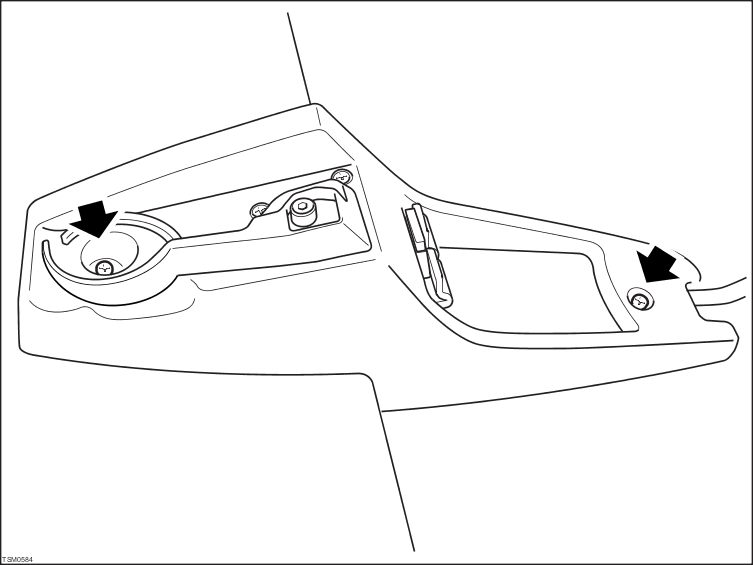

  2. Remove screws (x2) securing lower center console to floor.


  3. Release lower center console from floor.

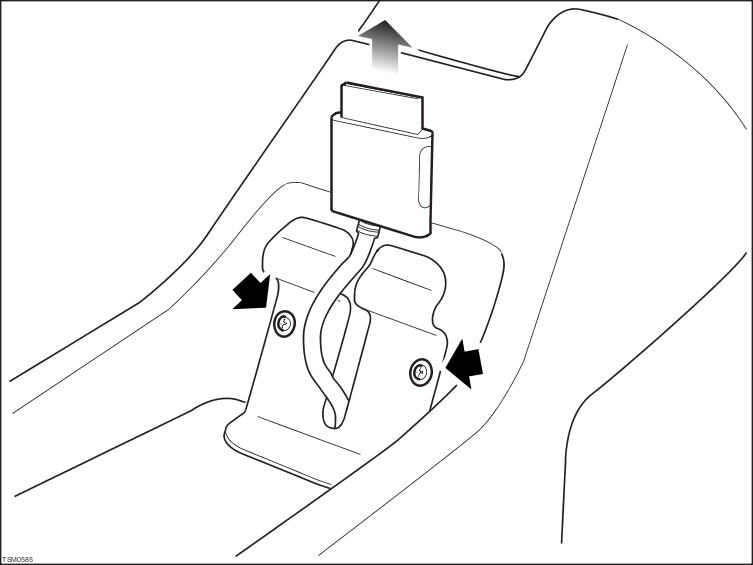

  4. Release iPod connector from lower center console.


  5. Remove lower center console.

  6. Remove screws (x2) securing iPod cable bracket to console. Remove cable bracket.

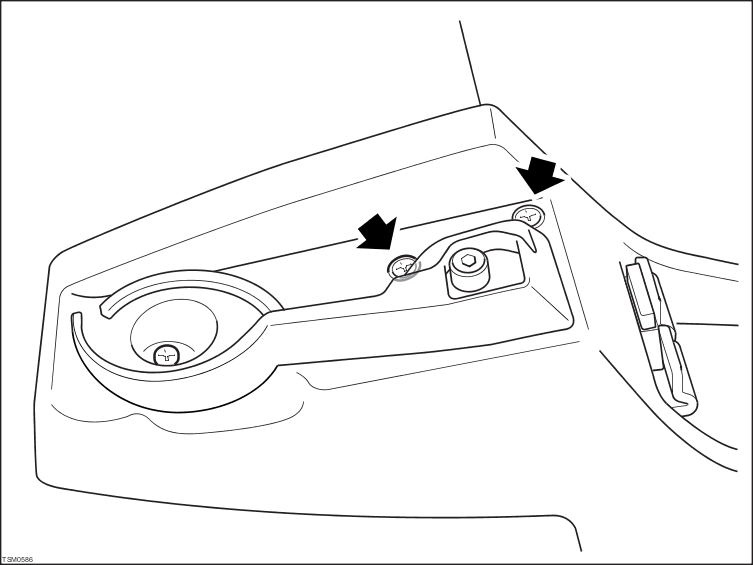

  7. Remove screws (x2) securing cup holder to console.


  8. Remove cup holder.

    Installation


  1. Installation procedure is reverse of removal.
