Trim - Power Socket

FRT No: 15191002

    Remove


  1. Remove center console trim (refer to procedure).

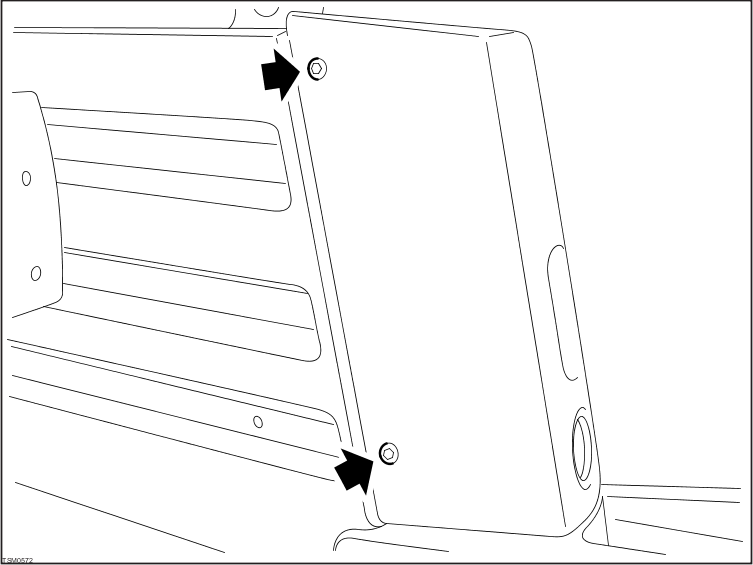

  2. Remove screws (x4) securing trim panel to footwell divider bracket.

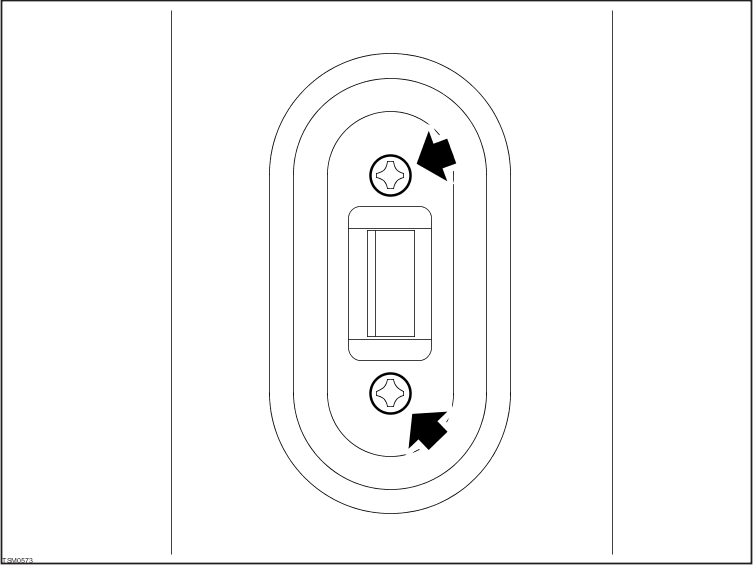

  3. Remove screws (x2) securing USB port to trim panel and release USB port.


  4. Disconnect connector from rear of power socket.


  5. Remove trim panel.

  6. Release and remove power socket from trim panel.

    Installation


  1. Installation procedure is reverse of removal.
