X098

Tesla Part Number

1079658-00-A

Connector

TESLA 2165505-00-A

Color

BK

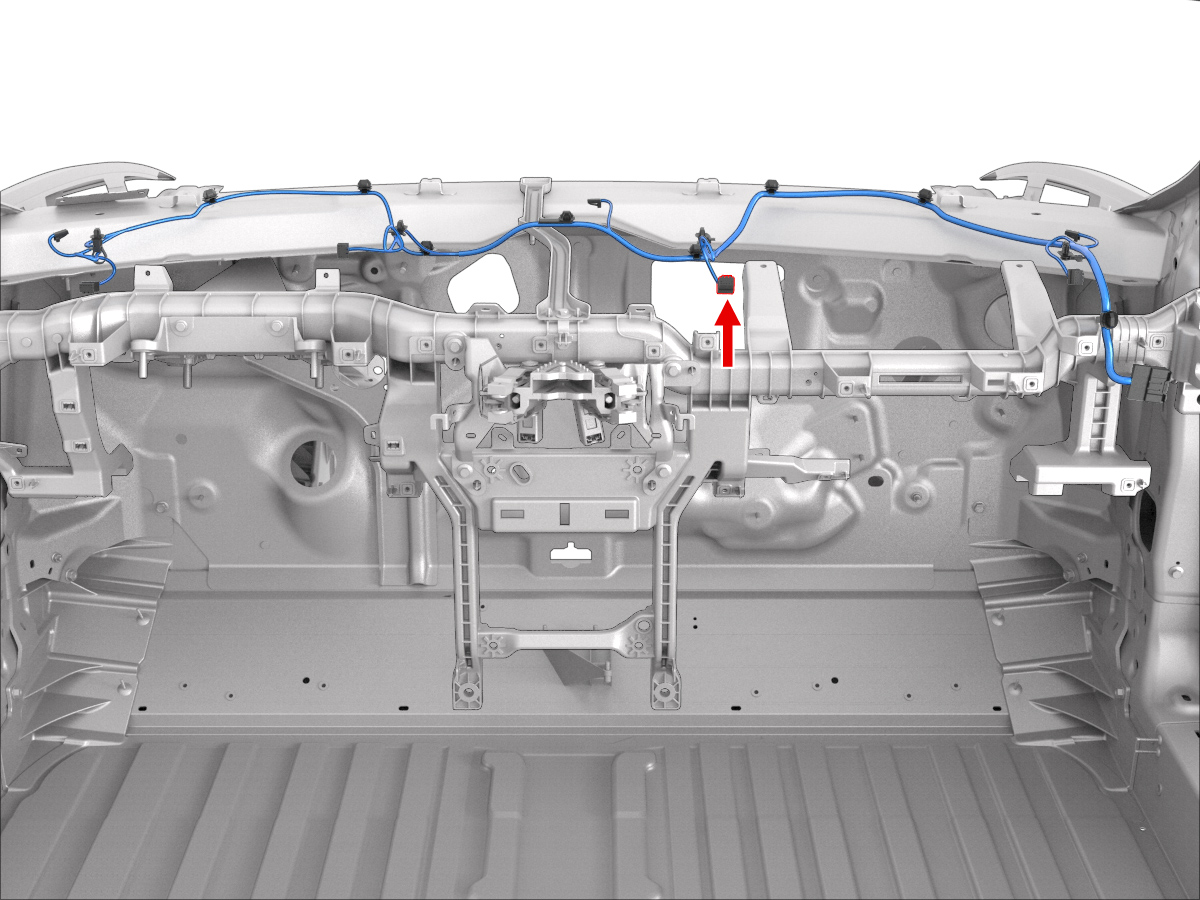

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
1	unused
2	unused
2	unused
3	KUM	MT095-29080	0.5x0.5F	YE	0.35			X951M	6
3	KUM	MT095-29080	0.5x0.5F	YE	0.35			X950M	6
4	KUM	MT095-29080	0.5x0.5F	VT	0.35
4	KUM	MT095-29080	0.5x0.5F	VT	0.35
5	KUM	MT095-29080	0.5x0.5F	GN	0.35			X950M	11
5	KUM	MT095-29080	0.5x0.5F	GN	0.35			X950M	11
6	KUM	MT095-29080	0.5x0.5F	BN	0.35			X950M	8
7	KUM	MT095-29080	0.5x0.5F	GY	0.35			X950M	7
