Condenser - Exit Duct - Hood - Front

FRT No: 10050302

    Remove

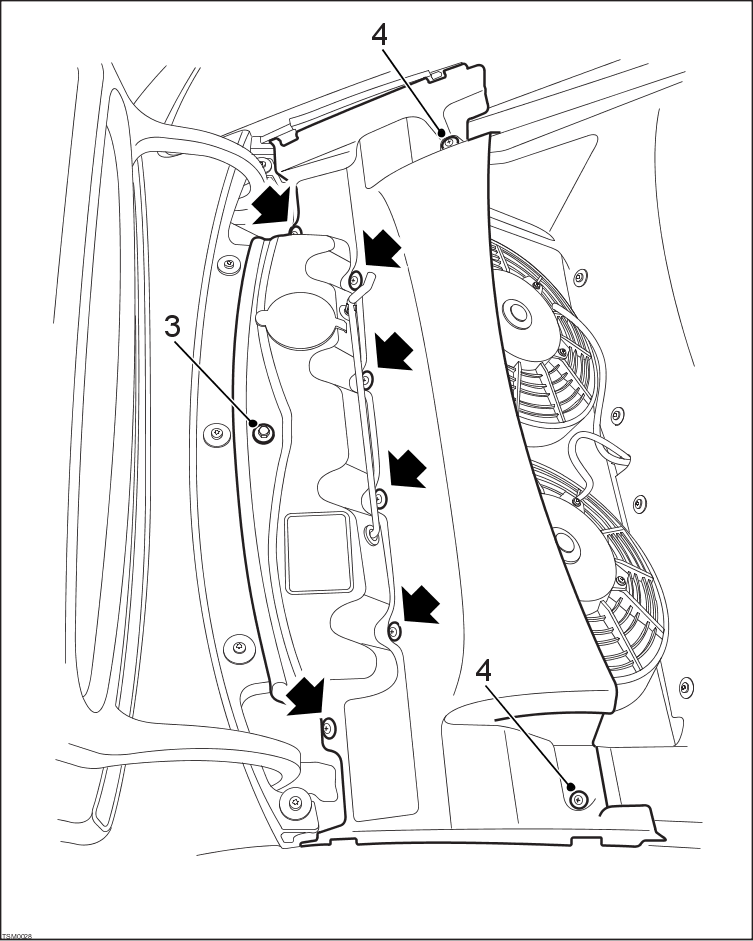

  1. Open hood.

  2. Remove scrivets (x6) securing duct to body.


  3. Remove bolt securing duct to body.

  4. Remove scrivets (x2) securing ducts to body and collect neoprene washers from between the ducts.

  5. Open washer reservoir cap and remove duct.

  6. Remove hood support and retaining clip from duct.

    Installation


  1. Installation procedure is reverse of removal.
