Remove
- Remove blower motor
(refer to procedure).
-
Remove nuts (x3) securing compressor to body (torque - 25 Nm). Remove compressor.
-

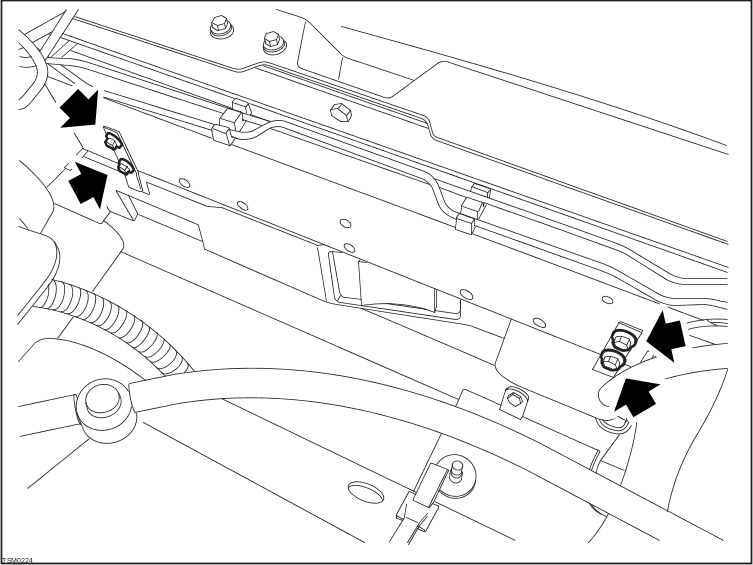

Remove bolts (x4) securing fresh air unit retaining brackets to body (torque - 15 Nm).

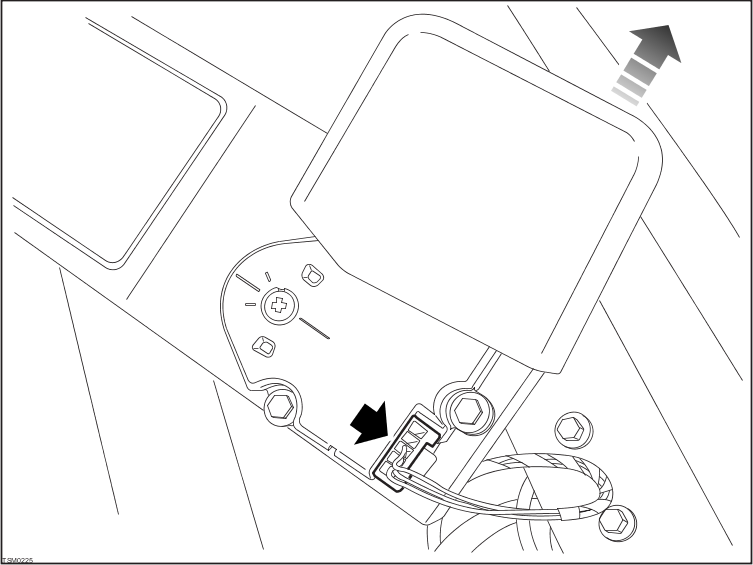

- Maneuver fresh air unit towards the rear and up to allow access to connector.
- Remove cover, disconnect connector from actuator and remove fresh air unit.
Installation
- Installation procedure is reverse of removal.
