Instrument Pack

FRT No: 17070302

    Remove


  1. Remove instrument pack trim (refer to procedure).

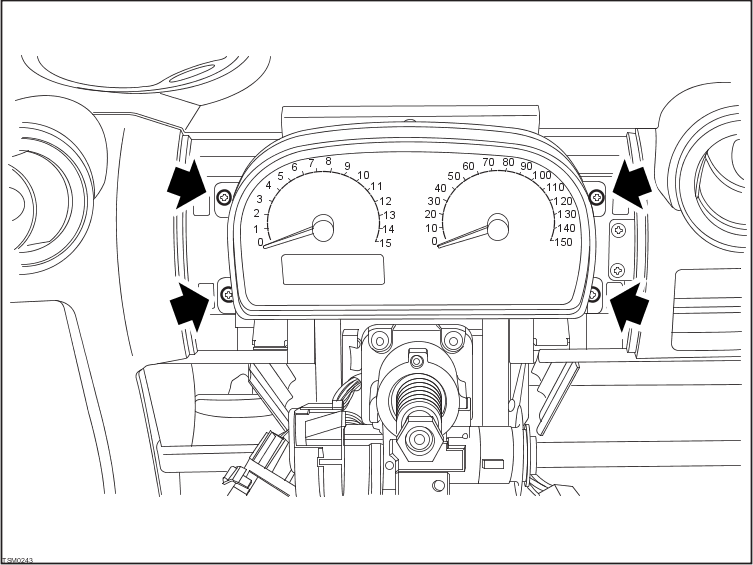

  2. Remove screws (x4) securing instrument pack to dash.

    3. NOTE: Steering wheel removed for clarity.

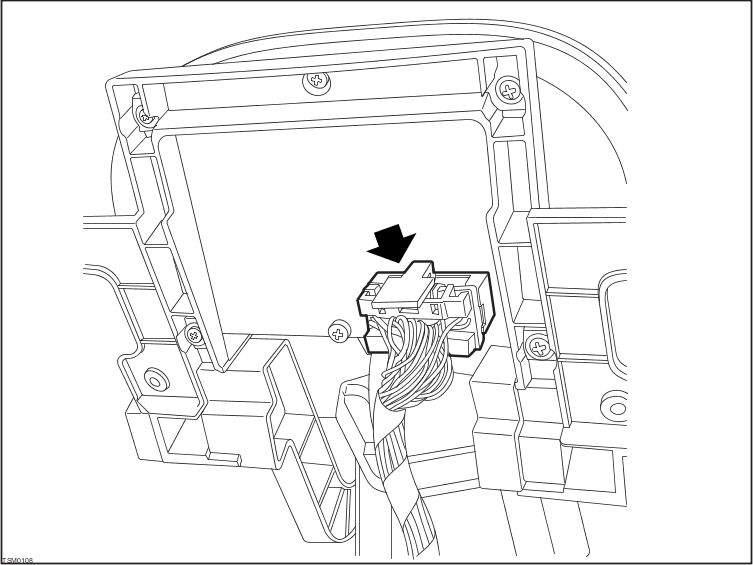

  3. Disconnect connector from instrument pack and remove instrument pack.

    Installation


  1. Installation procedure is reverse of removal.
