Solenoid Valve - Evaporator

FRT No: 18033202

    Remove


  1. Remove receiver drier (refer to procedure).

  2. Remove insulation pad.

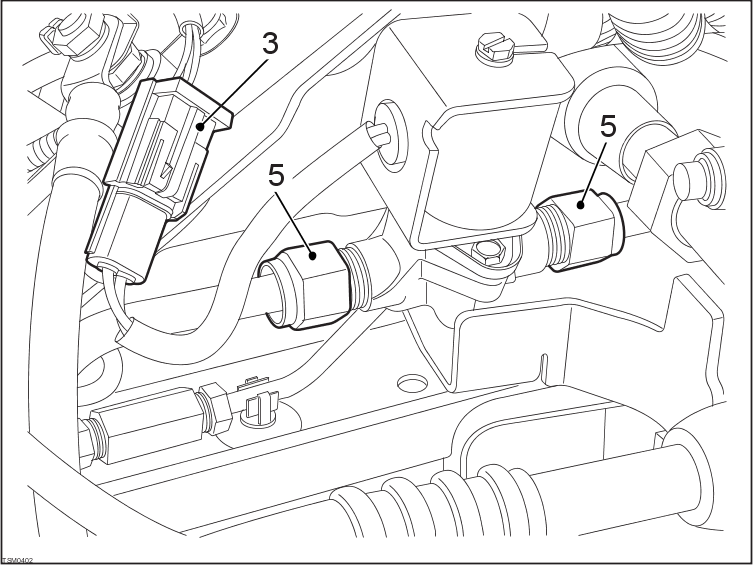

  3. Disconnect solenoid valve harness connector.


  4. Loosen solenoid rear pipe retaining nut (torque - 18 Nm).
    5. CAUTION: To prevent damage always use a suitable wrench to hold backing nut when loosening pipes and unions.


    CAUTION: Plug pipe connections to prevent ingress of moisture or dirt.



  5. Loosen front pipe union and disconnect pipe from solenoid valve (torque - 18 Nm).

  6. Pull back insulation to access bracket retaining bolts.

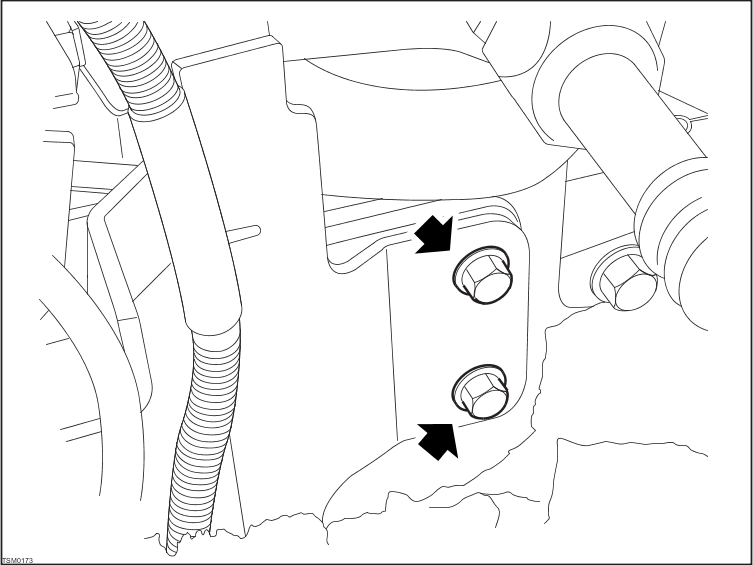

  7. Remove bolts (x2) retaining solenoid valve bracket to body (torque - 10 Nm).


  8. Remove solenoid valve and bracket assembly.

  9. Remove bolts (x2) securing solenoid valve to bracket.

    Installation


  1. Installation procedure is reverse of removal except for the following.

  2. Replace A/C pipe O-rings.
