Brake Caliper - Front - LH

FRT No: 33010402

    Remove


  1. Raise and support vehicle.
    2. WARNING: Do not work on an incorrectly supported vehicle.



  2. Remove road wheel (torque - 105 Nm)

  3. Release clips (x3) securing wheel speed sensor harness to brake hose.


  4. Remove nut securing brake hose to upper wishbone.

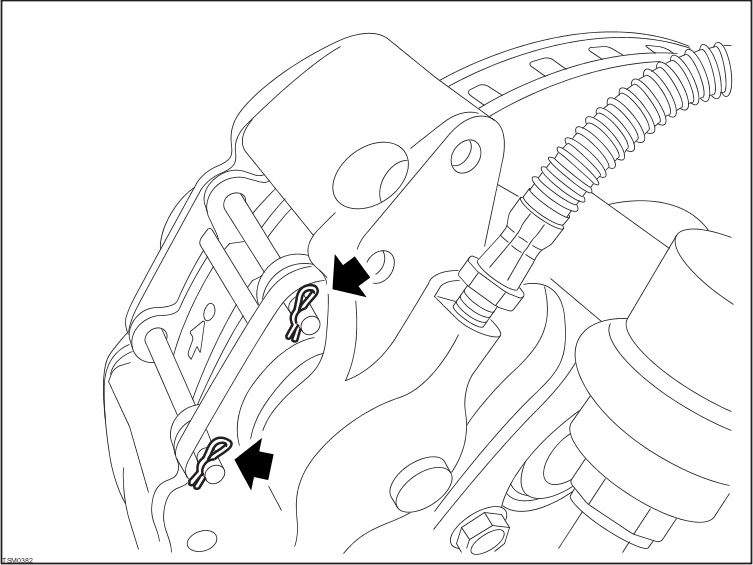

  5. Remove brake pad retaining pin R-clips.


  6. Ease caliper pistons back.

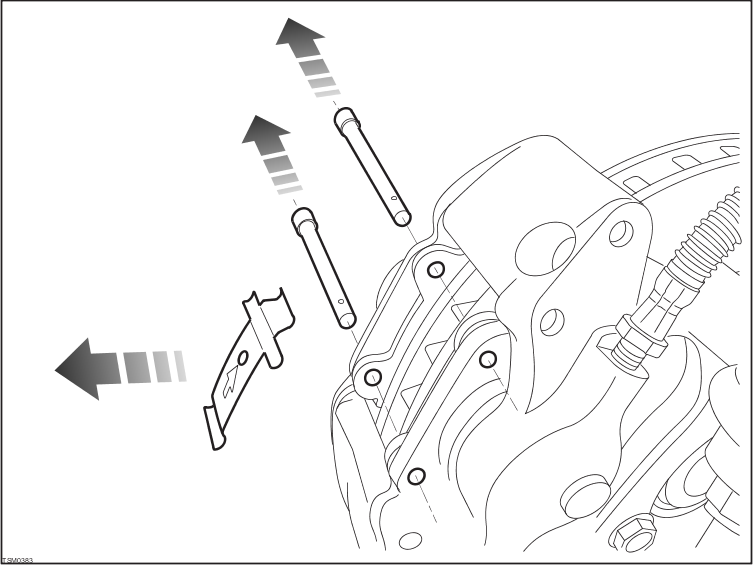

  7. Remove pad retaining pins and collect anti-rattle spring.

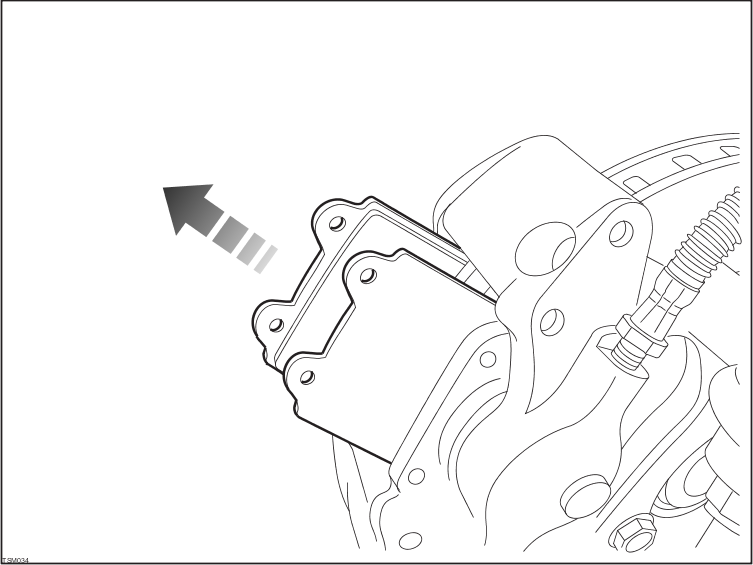

  8. Remove pads from caliper.

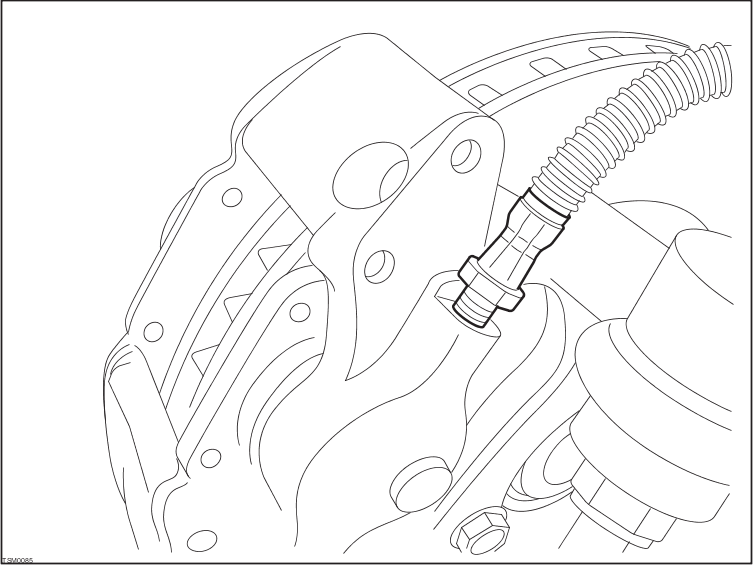

  9. Loosen brake hose in caliper (torque - 22 Nm).
    10. CAUTION: Do not clamp the brake hoses as they will be damaged and require replacing.



  10. Remove bolts (x2) securing caliper to upright and release caliper (torque - 45 Nm).

    11. NOTE: When installing, apply Loctite® 242® thread locking compound to bolt/screw threads.


  11. Unscrew caliper from brake hose and remove caliper. Cap hose to prevent excessive fluid loss.
    12. CAUTION: Ensure brake hose is aligned correctly with no excessive twist or bends.


    CAUTION: Plug pipe connections to prevent ingress of moisture or dirt.


    CAUTION: If brake fluid is spilt on the paintwork wash off immediately with clean water.


    Installation


  1. Installation procedure is reverse of removal except for the following.

  2. Clean and lubricate pins and pad backplates with suitable lubricant prior to installing to caliper.

  3. Bleed brakes.
    4. WARNING: Always check that brake pads are seated correctly before driving the vehicle.
