Servo Assembly

FRT No: 33031302

    Remove


  1. Remove drivers seat (refer to procedure).

  2. Remove steering wheel (refer to procedure).

  3. Release brake reservoir from mounting.

  4. Disconnect servo hose.

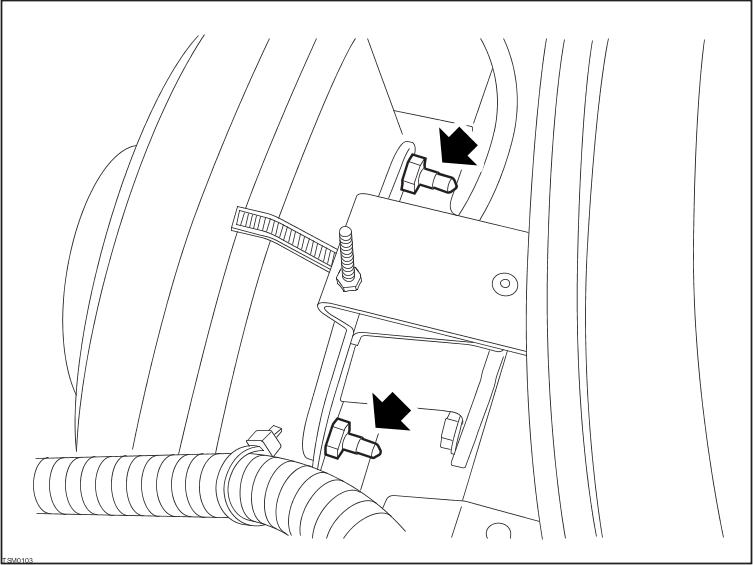

  5. Remove nuts (x2) securing master cylinder to servo and pull forward on brake pipes (torque - 25 Nm).


  6. Remove split pin from clevis pin.


  7. Depress brake pedal for clearance and remove clevis pin and spacer.

  8. Remove nuts (x3) securing servo to body and remove servo (torque - 25 Nm).

    Installation


  1. Installation procedure is reverse of removal except for the following.

  2. Check brake operation before driving vehicle.
