Trim - Diffuser Tray - LH

FRT No: 10250902

    Remove


  1. Raise and support vehicle.
    2. WARNING: Do not work on an incorrectly supported vehicle.

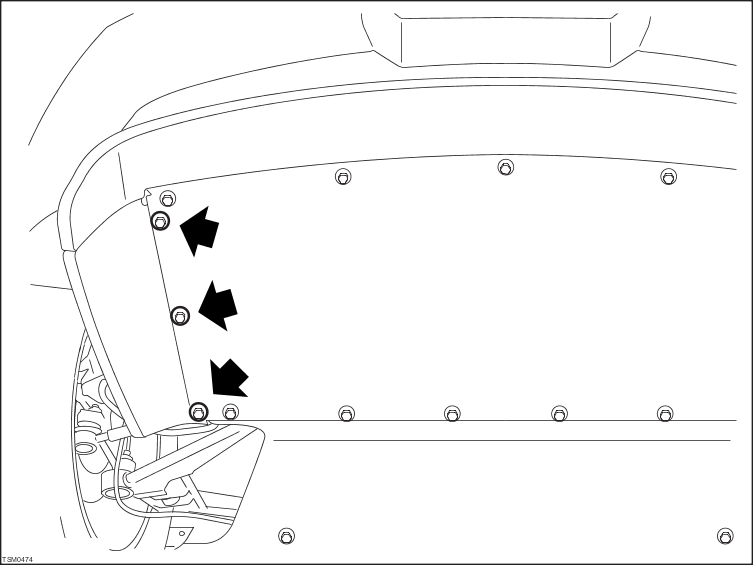

  2. Remove bolts (x3) securing LH trim to rear diffuser tray.


  3. Remove diffuser tray trim.

    Installation


  1. Installation procedure is reverse of removal.
