Window Guide Rail - Rear - LH

FRT No: 11020502

    Remove


  1. Remove door glass (refer to procedure).

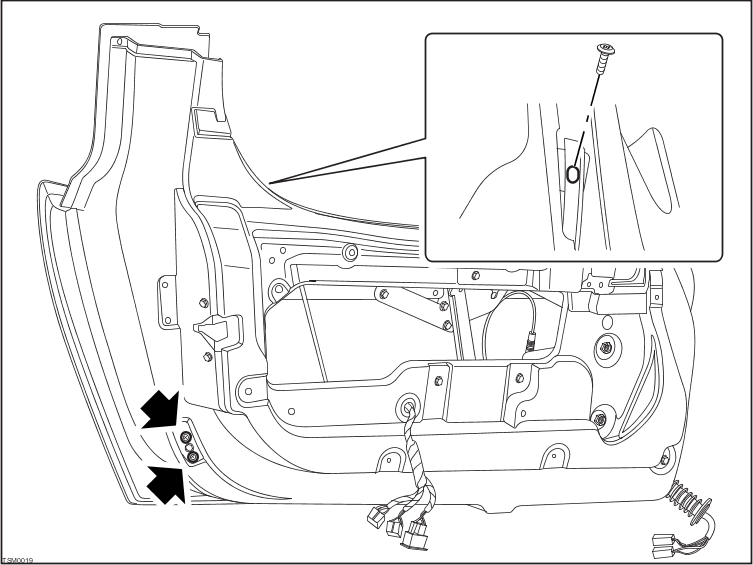

  2. Release screw securing top of guide rail to door.

    3. NOTE: When installing, apply Loctite® 242® thread locking compound to bolt/screw threads.


  3. Remove screws (x2) securing guide rail to door.

    4. NOTE: Always record quantity and fitted position of shims, washers, locktabs or clips.


  4. Remove guide rail.

    Installation


  1. Installation procedure is reverse of removal.
