Lamp - Brake - High Mounted

FRT No: 17110602

    Remove

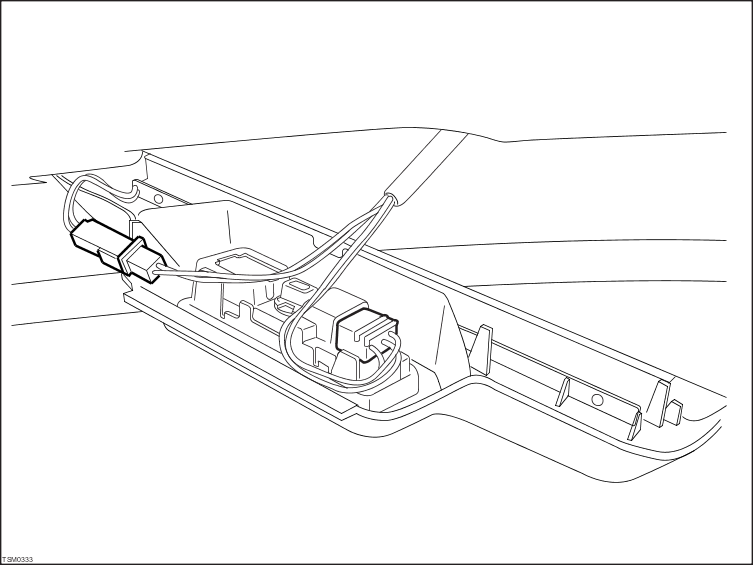

  1. Remove rear window upper finisher (refer to procedure).

  2. Disconnect connector from high mounted brake lamp.


  3. Disconnect connector from interior light.

  4. Remove high mounted brake lamp assembly.

  5. Depress tags (x4) and remove interior light.

    Installation


  1. Installation procedure is reverse of removal.
