Amplifier - Audio System

FRT No: 17270802

    Remove

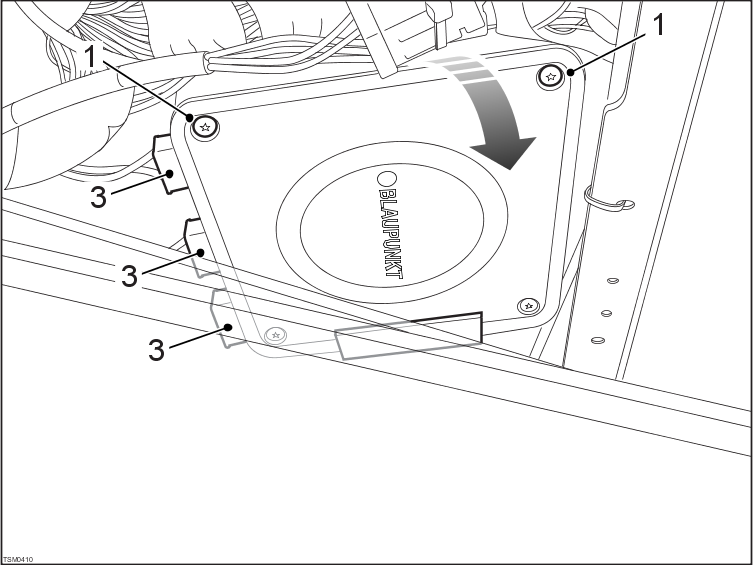

  1. Remove bolts (x2) securing amplifier to mounting bracket.


  2. Release amplifier from mounting bracket

  3. Disconnect harness connectors (x3) from amplifier.

  4. Remove audio system amplifier.

    Installation


  1. Installation procedure is reverse of removal.
