Switchpack

FRT No: 17031202

    Remove


  1. Remove upper dash trim (refer to procedure).

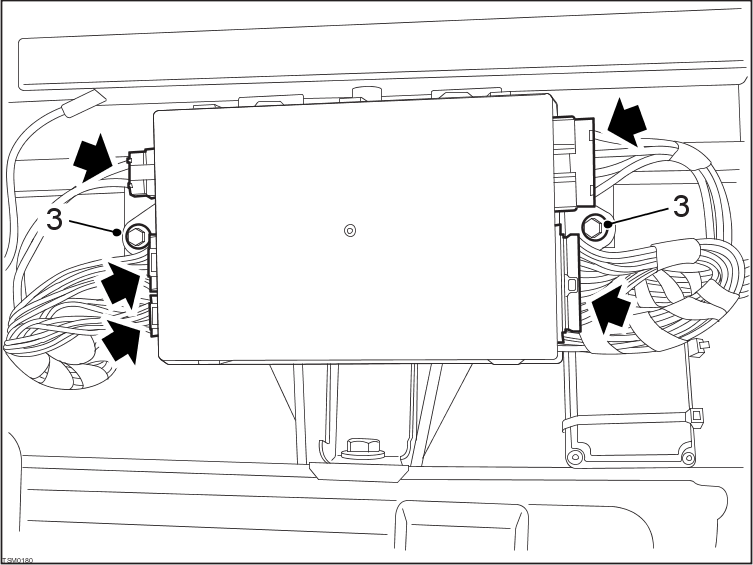

  2. Disconnect connectors (x5) from switchpack.

    3. NOTE: Apply Tesla recommended grease on the high load connectors before installation.


  3. Remove bolts (x2) securing switchpack to switchpack bracket.

  4. Remove switchpack unit.

    Installation


  1. Installation procedure is reverse of removal.
