Pressure Transducer

FRT No: 18032902

    Remove


  1. Recover refrigerant (refer to procedure).

  2. Remove RH dash trim (refer to procedure).

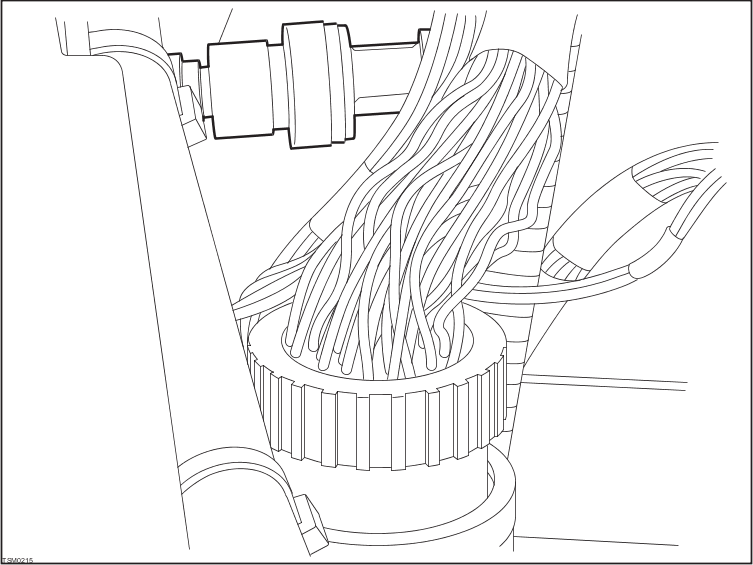

  3. Disconnect connector from pressure transducer.


  4. Remove pressure transducer from pipe (torque - 8 Nm).

    Installation


  1. Installation procedure is reverse of removal except for the following.

  2. Clean transducer and pipe mating face.
