Trim - Sill Panel - LH

FRT No: 15180102

    Remove

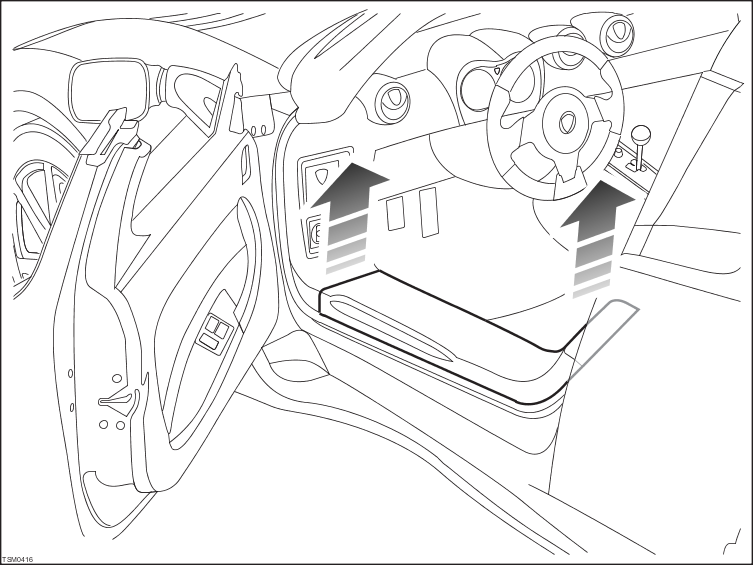

  1. Using two hands, carefully pull both ends of the trim panel upwards to release from the sill.
    2. CAUTION: The trim panel can be easily damaged if too much force is applied when releasing the Velcro strips that hold the panel to the sill.



  2. Remove sill trim panel.

    Installation


  1. Installation procedure is reverse of removal except for the following.

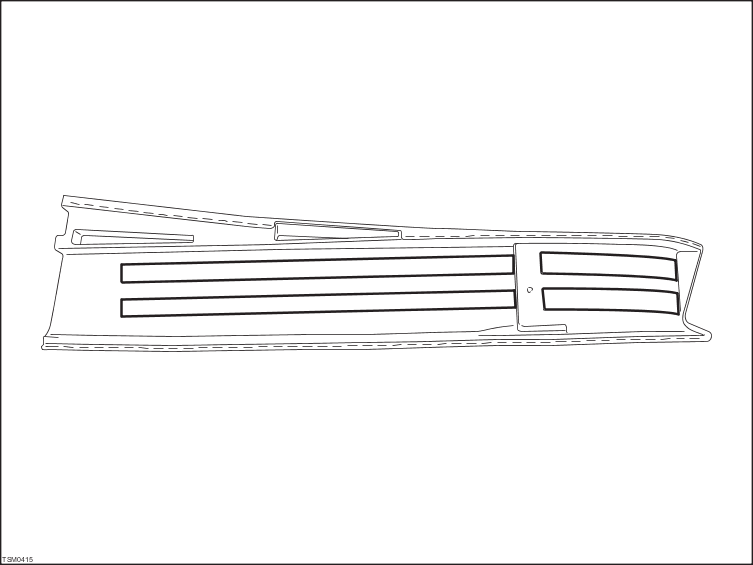

  2. If replacing the sill trim panel, Velcro strips will need to be affixed to the underside of the panel where illustrated.
