Speaker - Dash - LH/RH

FRT No: 17271202

    Remove


  1. Release locating tags (x3) and remove speaker grille.


  2. Remove screws (x4) securing speaker to dash panel.

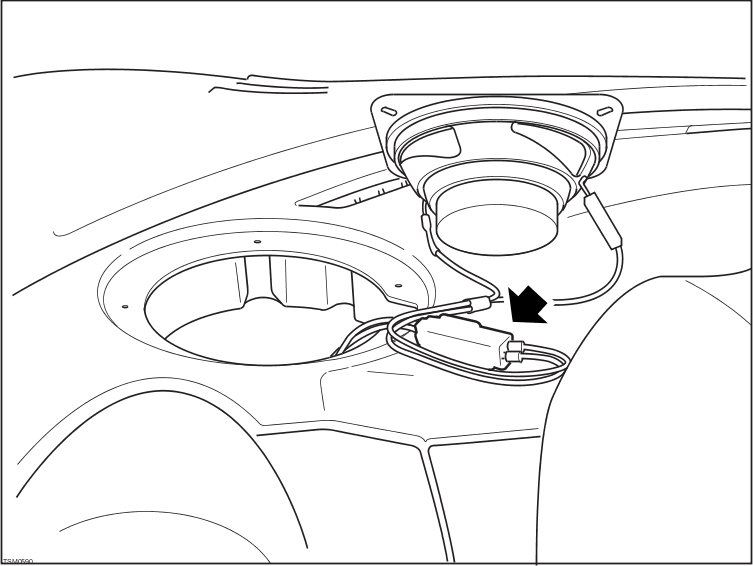

  3. Disconnect speaker harness connector and remove speaker.

    Installation


  1. Installation procedure is reverse of removal.
