Module - Vehicle Management System (VMS)

FRT No: 17040102

    Remove


  1. Inhibit APS.

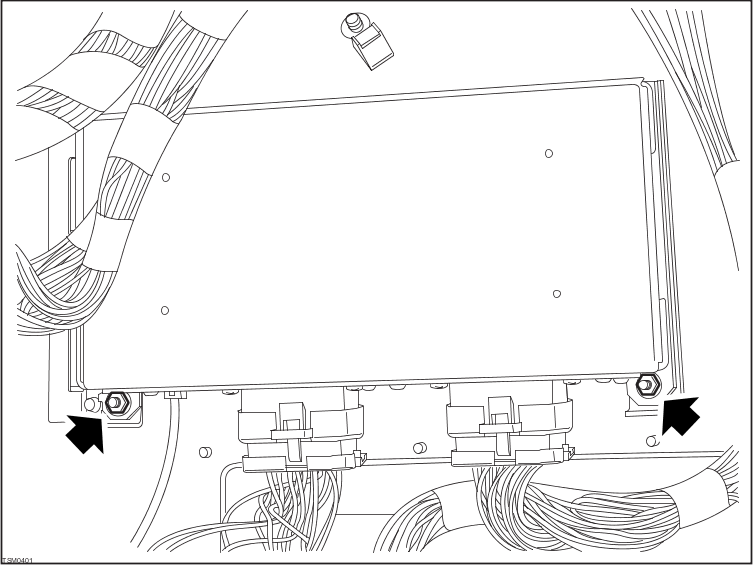

  2. Remove bolts (x2) securing VMS module to dash.

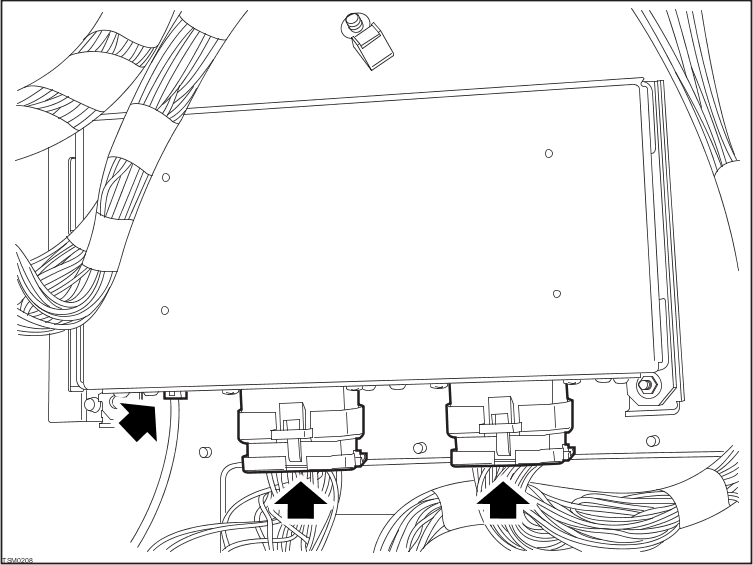

  3. Disconnect connectors (x3) and remove VMS from vehicle.

    Installation


  1. Installation procedure is reverse of removal.
