Vehicle - Touch Screen

FRT No: 17070202

    Remove

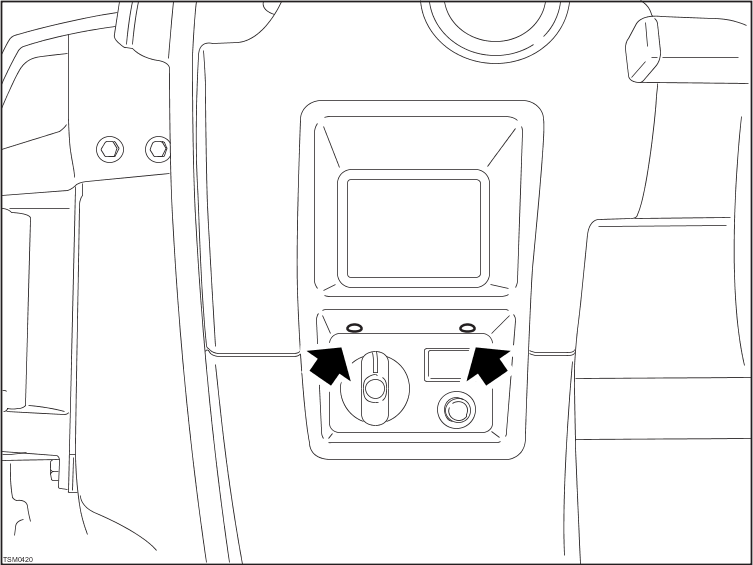

  1. Remove screws (x2) and release clips (x3) securing touch screen trim to LH upper dash trim and release trim panel.

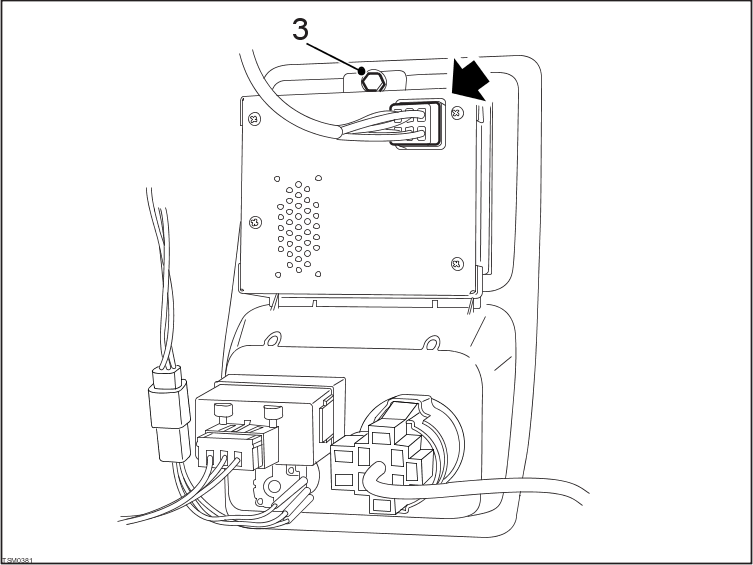

  2. Disconnect harness connector from touch screen.


  3. Remove bolt securing touch screen to trim panel.

  4. Remove touch screen.

    Installation


  1. Installation procedure is reverse of removal.
