Bolt Catcher - Lower Lateral Link - Pair (Retrofit)

Correction code 31010606 FRT 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Procedure

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.

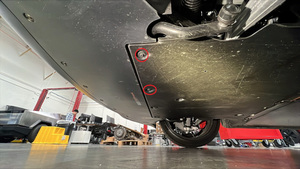

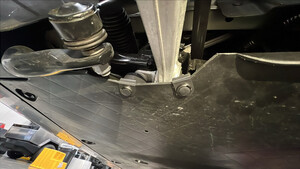

  2. Remove the outboard bolts (x2) that attach the front aero shield to the body.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

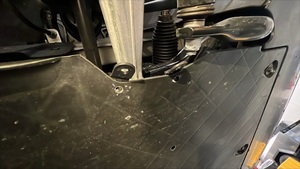

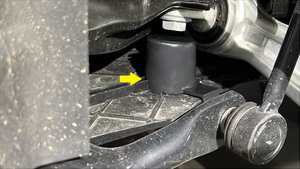

  3. Install the bolt catcher to the LH side of the front aero shield.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that the bolt catcher is properly seated.
  4. Install the outboard bolts (x2) that attach the front aero shield to the body.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Apply a thin bead of Loctite 222 to the threads of the outboard bolts (x2) that attach the front aero shield to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

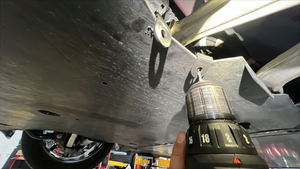

  5. Fold the bolt catcher flaps, and use a cordless drill to drill two 3mm holes.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Wear proper PPE, such as safety glasses, when performing this procedure.
    Informational PurposesAn informational icon, calling your attention
    Note

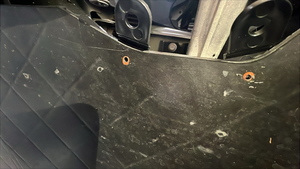

    The 2 holes are used to install clips that attach the bolt catcher to the front aero shield.
    Informational PurposesAn informational icon, calling your attention
    Note
    Apply pressure in an upward direction to secure the bolt catcher while drilling.

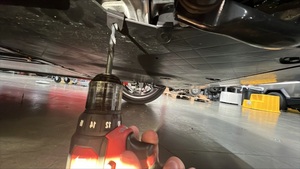

  6. Fold the bolt catcher flaps, and use the cordless drill to drill two 8mm holes.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Wear proper PPE, such as safety glasses, when performing this procedure.
    Informational PurposesAn informational icon, calling your attention
    Note
    The 2 holes are used to install clips that attach the bolt catcher to the front aero shield.
    Informational PurposesAn informational icon, calling your attention
    Note
    Apply pressure in an upward direction to secure the bolt catcher while drilling.

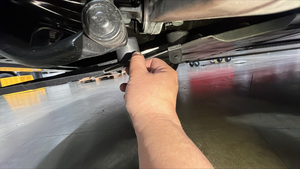

  7. Install clips (x2) that attach the bolt catcher to the front aero shield.
  8. Repeat step 2 through step 7 on the right side of the vehicle.
  9. Lower the vehicle and remove it from the lift. See Raise Vehicle - 2 Post Lift.
