G011

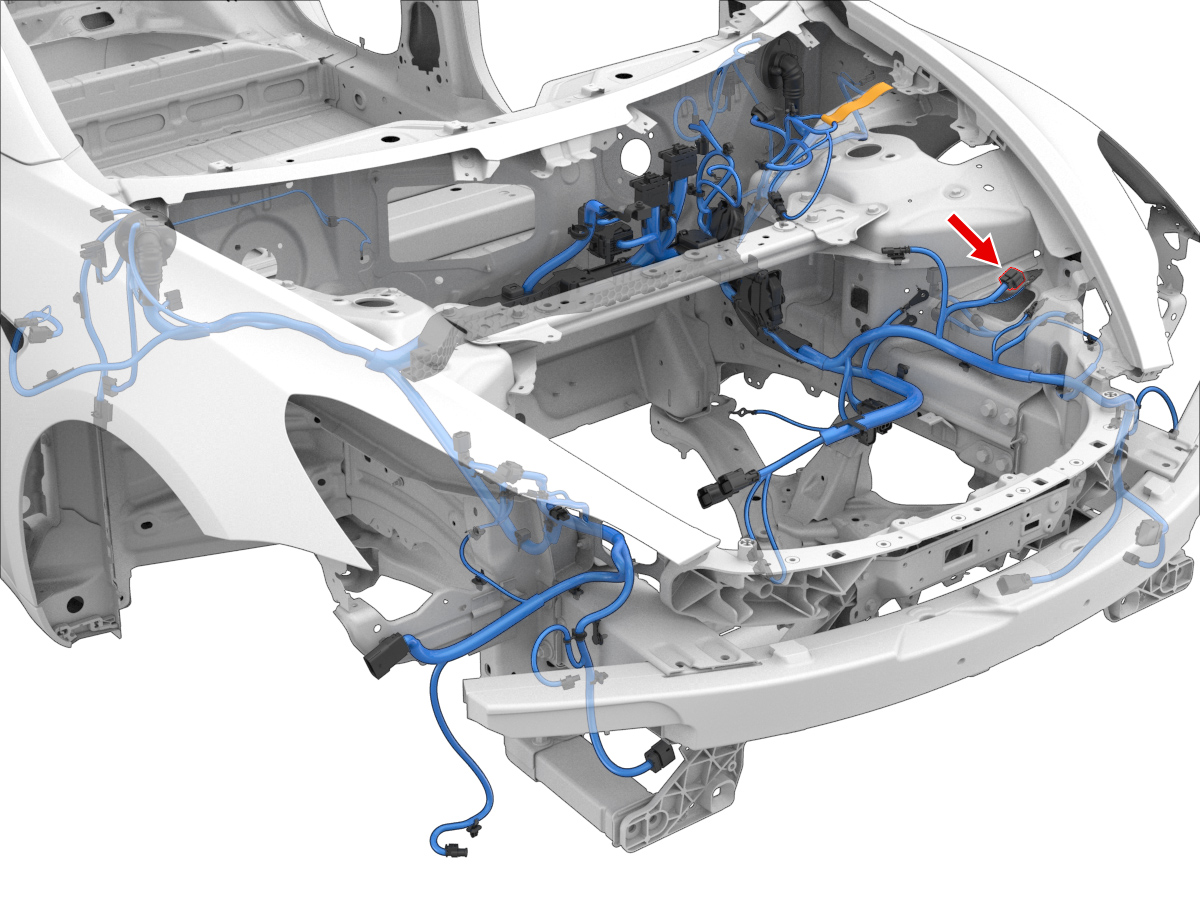

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-0460 | 2.3x0.64FS | BK | 0.50 | SUMITOMO | 7165-0349 | X268 | 2 |
| 2 | SUMITOMO | 8100-0460 | 2.3x0.64FS | BK | 0.50 | SUMITOMO | 7165-0349 | X911M | 8 |
| 3 | SUMITOMO | 8100-0461 | 2.3x0.64FS | BK | 1.00 | SUMITOMO | 7165-0395 | X260 | 3 |
| 4 | SUMITOMO | 8100-0461 | 2.3x0.64FS | BK | 1.00 | SUMITOMO | 7165-0395 | ||
| 5 | SUMITOMO | 8100-0460 | 2.3x0.64FS | BK | 0.50 | SUMITOMO | 7165-0349 | X301 | 1 |
| 6 | SUMITOMO | 8100-0460 | 2.3x0.64FS | BK | 0.50 | SUMITOMO | 7165-0349 | X301A | 4 |
